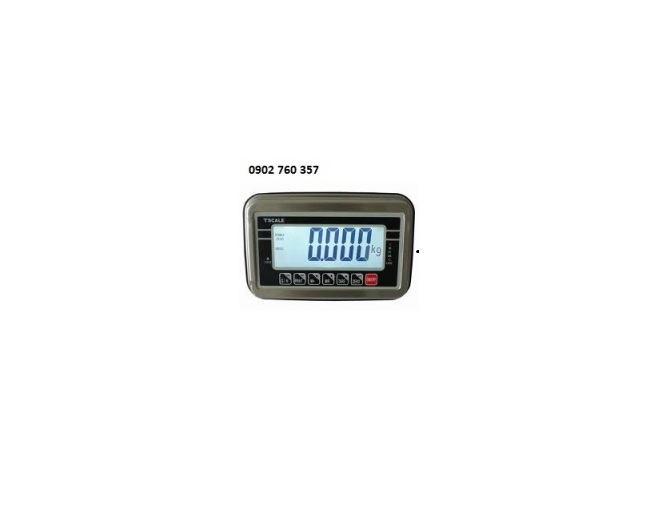

Đầu hiển thị BWS Series - TSCALE Taiwan |
Mã sản phẩm: | BWS |
Giá: |
Call
|
Bảo hành: | 12 THÁNG |
Xuất xứ: | CHĨNH HÃNG |
Vận chuyển: | Miễn phí vận chuyển TP Hà Nội - TP Hồ Chí Minh |
Lắp đặt: | MP |
|
|
|
|
- THÔNG TIN CHI TIẾT SẢN PHẨM
- THÔNG SỐ KỸ THUẬT
Check weighing indicator
- Internal resolution: 1/600,000
- Large LCD display with backlight
- Application programs include: accumulation, animal scale check weighing
- Battery powered
- SST case
Model
|
BW
|
BW-E
|
BWS
|
BWS-E
|
Display
|
52mm LCD
|
1.2’’LED
|
52mm LCD
|
1.2’’LED
|
Operate temp
|
-100C~+400C
|
ADC
|
sigma delta
|
ADC update
|
≤1/10 second
|
External resolution
|
1/30,000 (none approved) 1/6,000(OIML/EC type approval)
|
Keypad
|
7 keys mechanical switch
|
Power
|
AC adapter (9V/800mA) rechargeable battery (6V/4Ah)
|
Load cell excitation voltage
|
5V/150mA
|
Housing
|
ABS plastic
|
SST
|
Load cell(max)
|
4×350ohms
|
Gross weight
|
1.6kg
|
1.5kg
|
2.0kg
|
1.9kg
|
Packing
|
Master carton 4 in 1 packing, dimension 0.129m3, 40 feet container can load 1800 machine, 20 feet container can load 900 machine
|
Check weighing indicator
- Internal resolution: 1/600,000
- Large LCD display with backlight
- Application programs include: accumulation, animal scale check weighing
- Battery powered
- SST case
Model
|
BW
|
BW-E
|
BWS
|
BWS-E
|
Display
|
52mm LCD
|
1.2’’LED
|
52mm LCD
|
1.2’’LED
|
Operate temp
|
-100C~+400C
|
ADC
|
sigma delta
|
ADC update
|
≤1/10 second
|
External resolution
|
1/30,000 (none approved) 1/6,000(OIML/EC type approval)
|
Keypad
|
7 keys mechanical switch
|
Power
|
AC adapter (9V/800mA) rechargeable battery (6V/4Ah)
|
Load cell excitation voltage
|
5V/150mA
|
Housing
|
ABS plastic
|
SST
|
Load cell(max)
|
4×350ohms
|
Gross weight
|
1.6kg
|
1.5kg
|
2.0kg
|
1.9kg
|
Packing
|
Master carton 4 in 1 packing, dimension 0.129m3, 40 feet container can load 1800 machine, 20 feet container can load 900 machine
|
|
