Đầu cân CI-200S/SC Series ngoài ra còn có các model sau:
Đầu cân CI-201A
Đầu cân CI-200A
Đầu cân CI-200S
Đầu cân CI-200SC
|

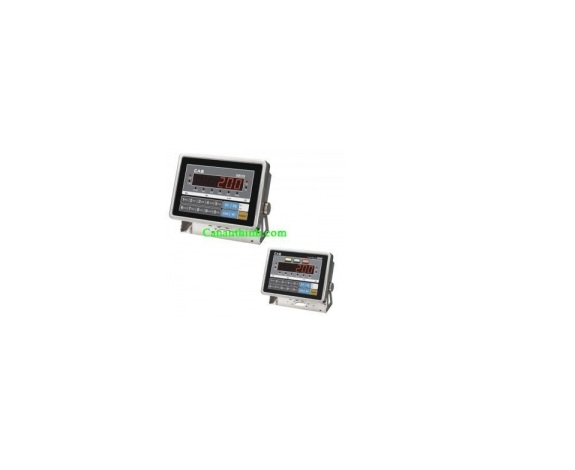

CI-200S/SC Series
- IP67 (CI-201S : IP65)
- High A/D conversion rate(80 times/ sec)
- High resolution 1/10,000
- Check-weight function(only for CI-200SC )
|
|
| |
| |
| |
| Model |
CI-200S/SC(LED) |
CI-201S(LCD) |
| Loadcell Excitation |
DC 5V |
| Loadcell Connection(350 Ω) |
8 ea |
| Zero Adjustment Range |
0~2mV/V |
| Input Sensitivity |
Over 2.0μV/D (OIML,NTEP), 0.5 μV/D(Non approval) |
| Internal Resolution |
1/520,000 |
| External Resolution |
1/10,000(1/30,000 Non approval) |
| A/D Conversion Rate |
80 times/sec |
| Battery Time(continuous usage) |
Approx. 33 hours |
Approx. 25 hours |
| Battery Charging Time |
Approx. 12 hours |
| Key |
Numeric keys & 5 function keys |
| Display |
6 Segment 1 inch LED/
3 color weight comparison
LED (CI-200SC) |
6 digit (with backlight) |
| Power |
DC 12V Adaptor & 6V Rechargeable battery |
| Operating Temp. |
-10 ℃ ~ 40 ℃ |
| Product Size (mm) |
250(W) x 169.5(D) x 83(H) |
| Product Weight (kg) |
Approx. 1.5 |
| IP Class |
IP 67 |
IP 65 |
|
